High-comfort vehicle with 2–6 seats. It is driven with a traction electric drive, which is powered by a contact network or onboard energy storage unit, used for driving on urban and suburban routes. The design of the unicar makes it possible to arrange it's specific modules into a single train through a rigid coupling. The number of sections of the train and their capacity depends on the assumed passenger flow. The personalized version of unicar U4-431-01 in tropical version is designed for regions with arid climates and upper-temperature limit of operation up to + 55 °C inclusive.

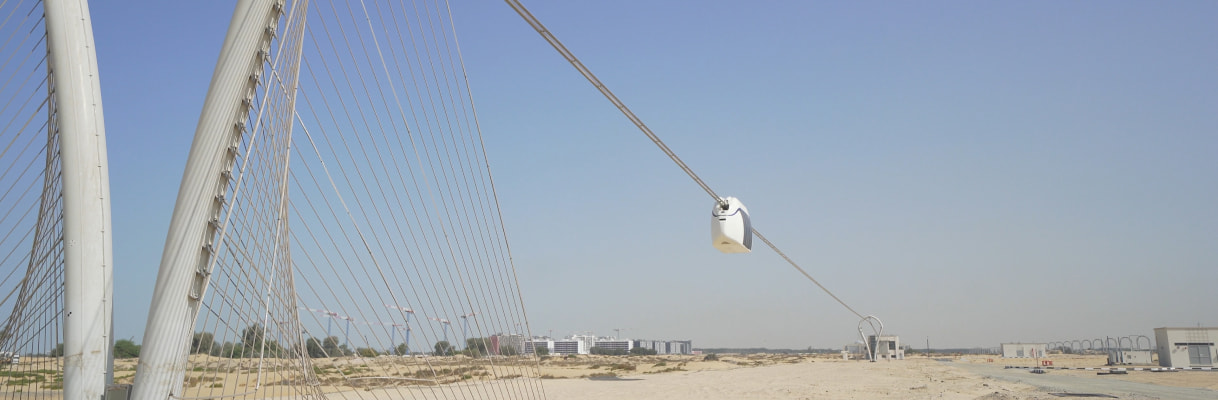

Image Detail : uniCar in tropical design on the flexible track structure (Sharjah, UAE, 2022)
Dimensions |
Length | 4,700 mm |
---|---|---|
Width | 1,650 mm | |
Height | 2,380 mm | |
Basic features |
Number of seats | 2–6 |
Curb weight | 2,440 kg | |
Total weight | 2,890 kg | |
Noise dBA, no more | 75 | |
Distance run in offline mode at 100–km/h | 300 | |
Maximum gradient | 15% | |
with a special design version | 30% | |
Performance |
Transportation capacity to | 1,500 |
The interval between vehicles, sec. | 30 | |
Speed | Maximum speed, km/h | 150 |
Consumption of electric energy/fuel
(kg/100 km / kg / passenger × 100 km)
|
at 50 speed, km | 0.678 / 0.113 |
at 50 speed, km | 1.038 / 0.173 | |
at 150 speed, km | 1.620 / 0.270 |
